Description

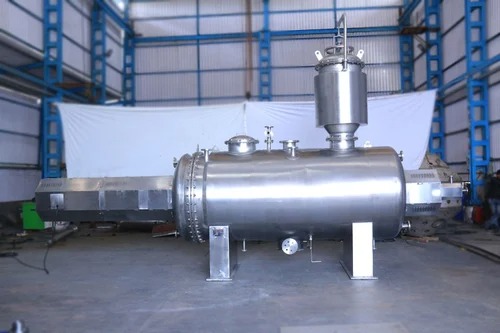

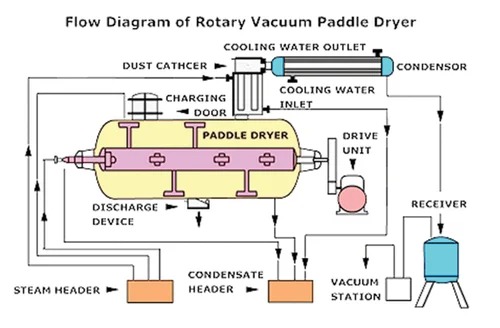

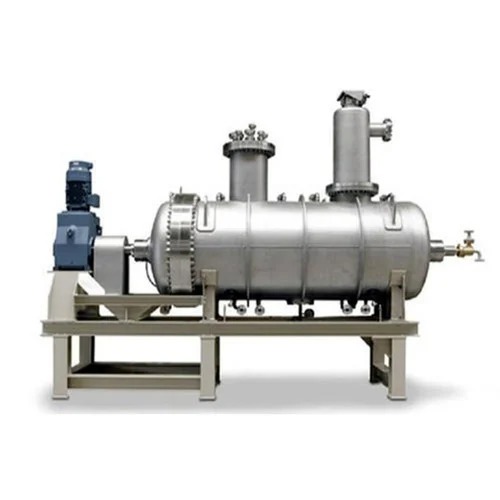

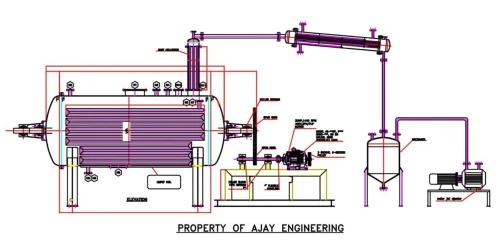

DryTechno Rotary Vacuum Paddle Dryer is a jacketed / Limpet cylindrical vessel with a large Diameter Hollow shaft. Attached to the shaft are hollow paddles provided with specially designed scraper blades, which scrapthe entire Internal surface of the Dryer and continuously move and rotate the material thereby precluding the possibility of material remaining in contact with hot surface for protracted periods of time.
The jacket and hollow shaft with paddles can be heated with hot water,steam or any other thermal fluid capable of providing a large Indirect heat transfer area. Cooling can be also be done by water, Brine or any other refrigerant through the jacket and hollow shaft. Limpet Coil can be provided in lieu of jacket, if liquid heating medium is used. Hard facing of shaft provided in way of gland packing areas of trunions. Arrangements for Nitrogen purging provided. Bag cleaning arrangement with pulsation by Nitrogen jet injector provided. Heavy duty trunions and bearing support the hollow shaft (agitator) and the drive is provided by means of a motor through reduction gears chain and sprocket.
Provision has also been made to insert four breaker bars inside the dryer shell for particle size reduction. In special cases, stationary scraper blade can be provided to scrap the rotating agitator, for highly sticky materials. Rap the rotating agitator, for highly sticky materials.
Technical Specifications
| Product Type | Rotary Vacuum Paddle Dryer (RVPD) |
| Brand | DryTechno |
| Volumetric Capacity | 1000 Liters |
| Batch Capacity | 200 kg |
| Heating/Cooling Source | Steam, Hot Water, Thermal Fluid (Heating) / Water, Brine (Cooling) |
| Automation Grade | Semi Automatic |
| Shaft Type | Large Diameter Hollow Shaft with Hollow Paddles |
| Safety & Maintenance | Nitrogen Purging Arrangement, Bag Cleaning by Nitrogen Jet Injector |
| Additional Features | Breaker Bars (for size reduction), Scraper Blades |
| Construction | Heavy Duty Trunnions, Hard Facing on Shaft (Gland Packing Area) |
| Finishing | Matte Finish |
Key Features
- Maximum Heat Transfer: Heating provided through Jacket/Limpet, Hollow Shaft, and Paddles.
- Efficient Mixing: Scraper blades ensure material doesn’t stick to walls.
- Handling Sticky Material: Stationary scraper blades available for highly sticky products.
- Advanced Cleaning: Pulse Jet Nitrogen injector for bag cleaning.
