Description
| Capacity | 3 KL |
| Reactor Capacity | 1000 L |
| SS Grade | SS316 |
| Reactor Type | Jacketed / Agitated |
| Usage/Application | Chemical Industry / Reaction |
| Design Pressure | 3 bar |
| Design Temperature | 150C |
| Agitator Type | Anchor |

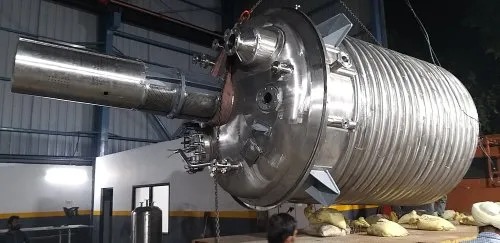

We manufacture high-quality Stainless Steel Chemical Reactors designed for efficient chemical reactions, mixing, heating, cooling, and processing of liquids and semi-liquid materials in pharmaceutical, chemical, API, agrochemical, and specialty chemical industries.
The reactor is engineered for safe and controlled reaction conditions under atmospheric, vacuum, or pressure operations. It ensures uniform mixing, precise temperature control, and high process efficiency for a wide range of chemical applications.
Manufactured using premium-grade SS304, SS316, and SS316L stainless steel, the reactor offers excellent corrosion resistance, durability, and hygienic operation. Depending on process requirements, the reactor can be supplied in jacketed, limpet coil, half coil, or plain designs for effective heating and cooling.
The system can be equipped with various types of agitators such as anchor, propeller, turbine, or high-shear mixers. It can also be integrated with VFD-based speed control, PLC automation, temperature sensors, pressure gauges, and other process instrumentation.
All reactors are fabricated as per GMP and industrial standards, ensuring safe operation, easy maintenance, and long service life. Tailor-made solutions are available as per user requirement specifications (URS) for specific industrial applications.
