Description

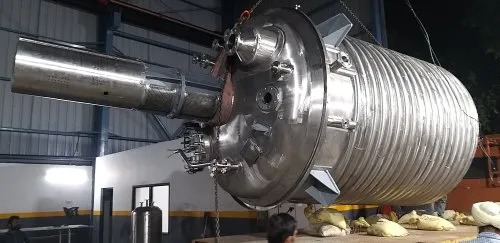

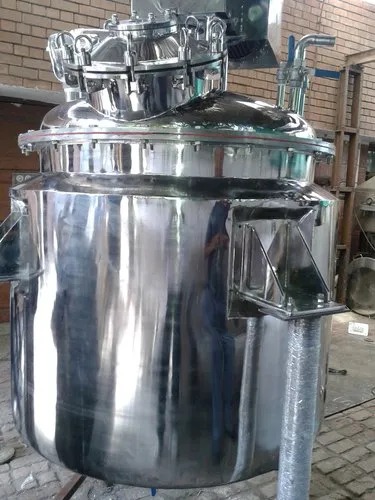

We at Pragati Engineers fabricate all types and sizes of Reactors, ranging from Lab Models to Industrial Reactors up to 10,000 Liters capacity. These reactors are designed, fabricated, and tested as per the latest ASME standards. We offer complete customization in materials, including Stainless Steel, Mild Steel, and Reactors with internal lining of chemicals like Teflon, Halar, ETFE, and PVDF. The units come with heating/cooling options like Outer Limpet Coil, Dimple Sheet, or Jacket with insulation and cladding.
Technical Specifications
| Product Type | Chemical Reactor (Lab to Industrial) |
| Capacity Range | 1 Liter to 10,000 Liters |
| Material of Construction | SS (All Grades), Mild Steel, Special Alloys |
| Internal Lining Options | Teflon, Halar, ETFE, PVDF (Internally Lined) |
| Mixing Arrangement | Top Mixer with Mechanical Seal OR Magnetic Mixer |
| Temperature Range | -20 to 300 Deg C |
| Pressure Handling | 3-6 kg, 12-15 kg, >15 kg (Customizable) |
| Jacket Type | Outer Limpet Coil / Dimple Sheet / Insulated Jacket |
| Motor Type | Flame Proof or Non-Flame Proof with Gear Box |
| Design Standard | Latest ASME Standards |
| Automation Grade | Semi-Automatic |
Additional Information
| Production Capacity | 10 Units/Month |
| Delivery Time | 30 Days |
