Description

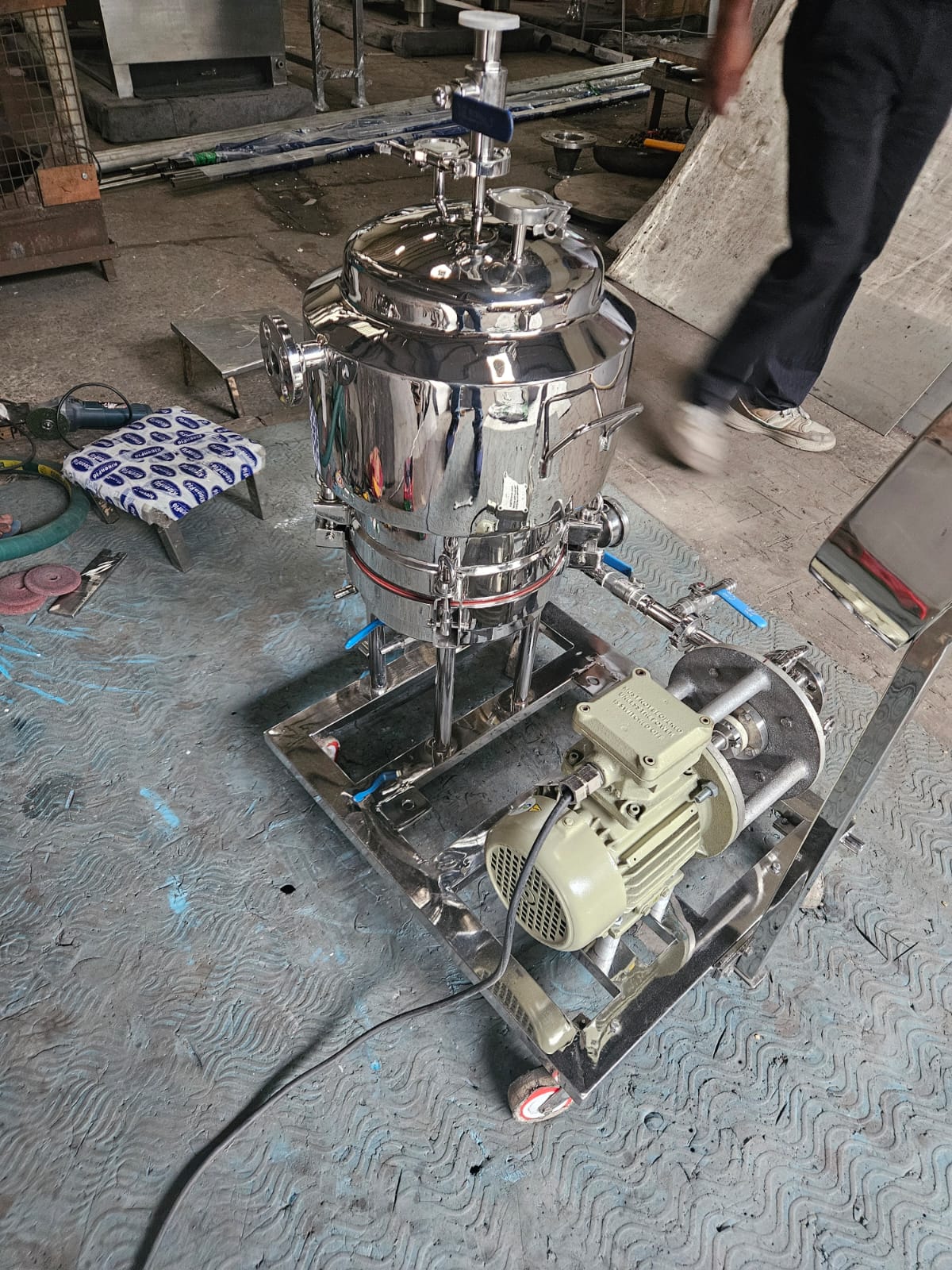

The Sparkler Filter, also known as the Zero Hold Up Filter Press, is a specialized filtration equipment used in Pharmaceutical and Chemical industries. As detailed in our catalog under Filtration Equipments, this unit operates on a reverse flow principle, ensuring that no liquid is left inside the tank after the batch is completed. It is widely used for filtering Syrups, API solutions, and varnishes.
Technical Specifications
| Product Type | Sparkler Filter / Zero Hold Up Filter Press |
| Available Sizes (Dia) | 8″, 14″, 18″, 24″, 33″ Diameter |
| Number of Plates | 10 Plates to 30 Plates (Customizable) |
| Material of Construction | Contact Parts: SS 304 / SS 316 / SS 316L |
| Pump | Attached Centrifugal / Gear / Lobe Pump |
| Pressure | Design Pressure up to 4-5 Bar |
| Finish | Internal: Mirror Finish | External: Matt/Grit Finish |
Key Features
- Zero Hold Up: The unique design ensures complete filtration of the batch without any hold-up volume.
- Cartridge Assembly: The plate pack is assembled as a single cartridge for easy loading and cleaning.
- Closed Operation: Prevents evaporation of volatile solvents and ensures operator safety.
- Wide Application: Suitable for Syrup, Honey, Oil, Chemical, and API filtration.
