Description

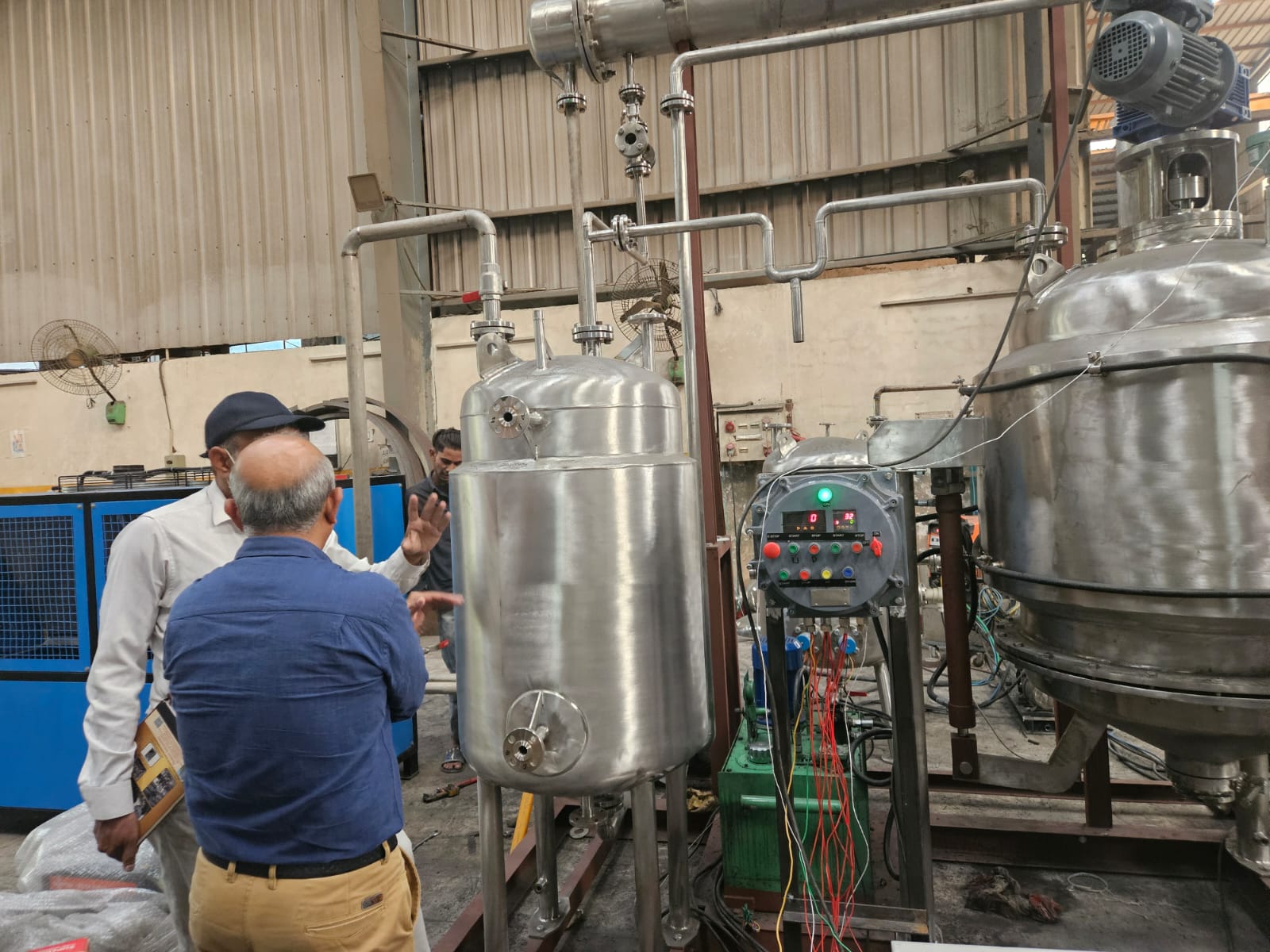

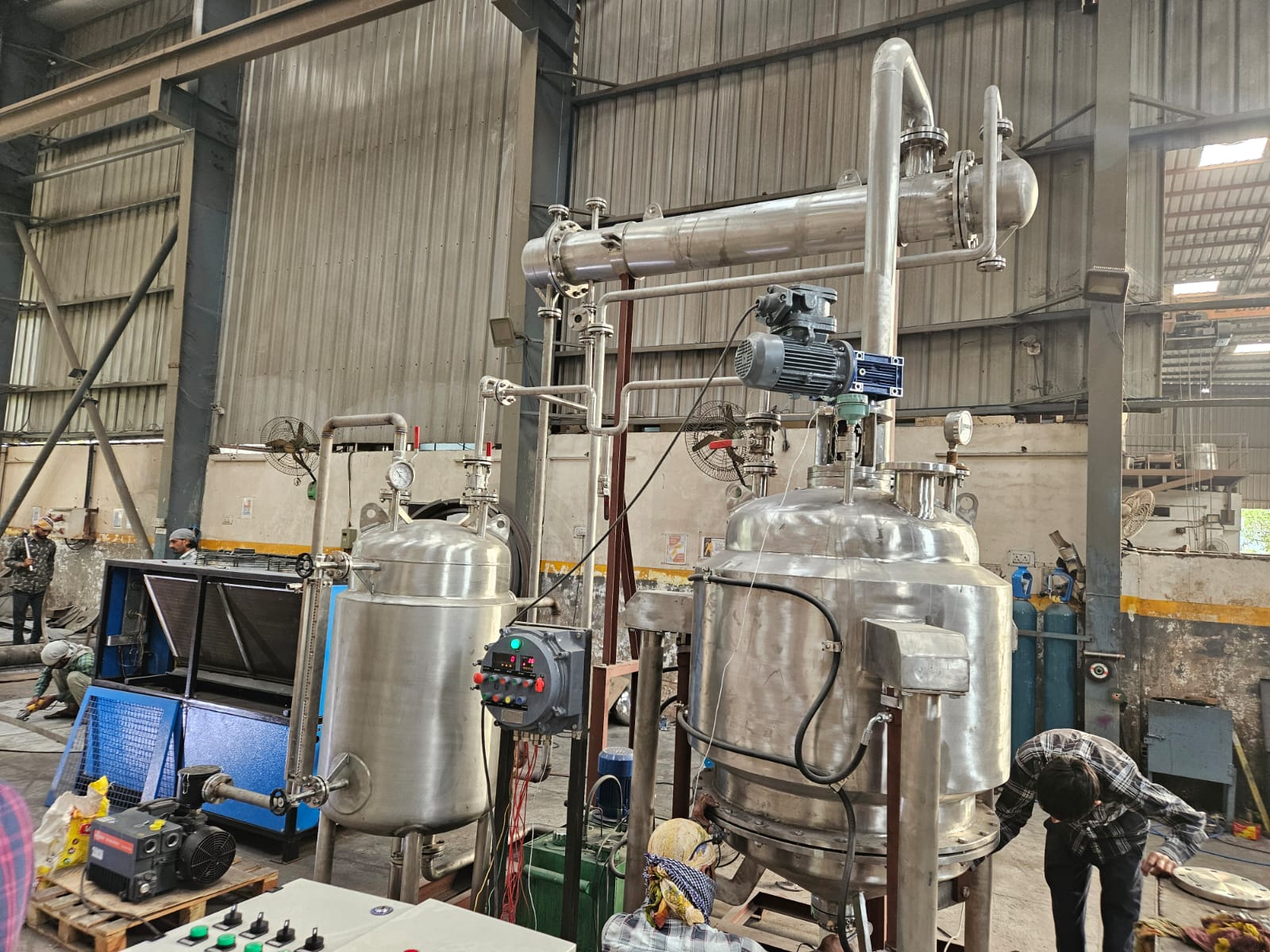

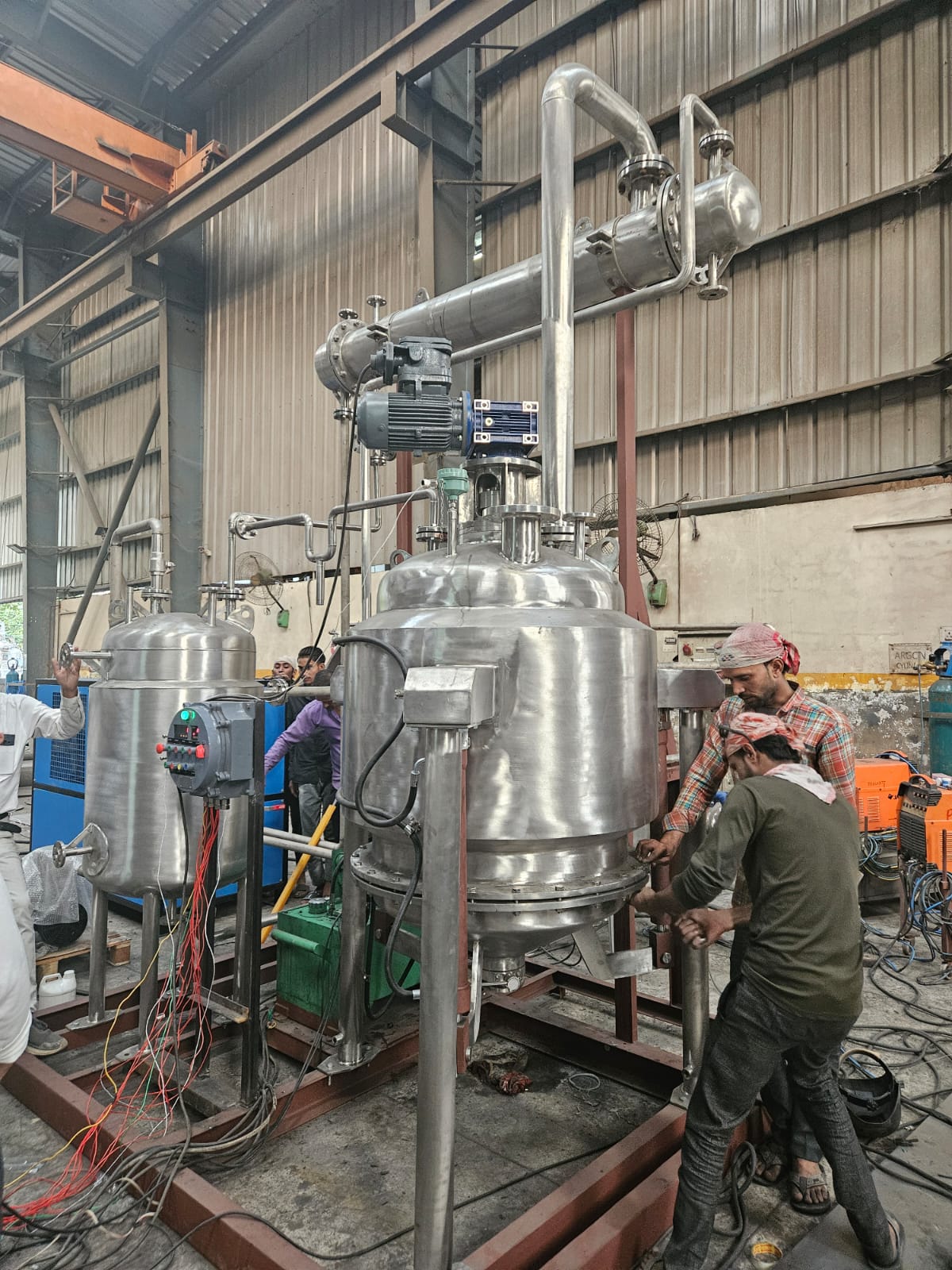

The Solvent Recovery Plant is an essential system for API and Chemical industries to recover expensive solvents and reduce wastage. As illustrated in our API process diagram, the system comprises a Shell & Tube Heat Exchanger (Condenser) connected to a Receiver Tank. Vapors from the Reactor or Dryer are condensed into liquid and stored in the receiver for reuse, making the process cost-effective and eco-friendly.
Technical Specifications
| Product Type | Solvent Recovery System |
| Components | Primary Condenser (Heat Exchanger) + Receiver Tank |
| Condenser Area | 1 m² to 50 m² (Shell & Tube Type) |
| Receiver Capacity | 50 Liters to 2000 Liters |
| Material of Construction | SS 304 / SS 316 / SS 316L |
| Compatibility | Compatible with Reactors, VTD, RCVD, and ANFD |
| Pressure Rating | Full Vacuum to 5 Bar Pressure |
Key Features
- High Recovery Rate: Designed to recover up to 95-99% of solvents.
- Cost Saving: Reduces the need to purchase fresh solvents repeatedly.
- Closed Loop: Ensures zero emission of toxic vapors into the atmosphere.
- Customizable: Available in vertical or horizontal mounting based on space availability.
