Description

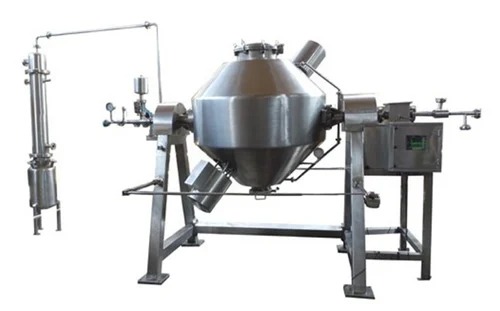

DryTechno is a leading manufacturer of Rotocone Vacuum Dryers (RCVD). These are batch-type vacuum dryers suitable for free-flowing materials that are readily converted from slurry or wet cake to free-flowing powder without sticking or forming lumps. The rotary action permits gentle folding and mixing of the material, bringing it in contact with indirectly heated surfaces for efficient vaporization. Operating in a vacuum lowers the boiling point of the solvent, ensuring faster evaporation at lower temperatures.
Technical Specifications
| Product Type | Rotocone Vacuum Dryer (RCVD) |
| Brand | DryTechno |
| Capacity | 1000 Liters |
| Material | Carbon Steel |
| Automation Grade | Semi-Automatic |
| Heating Type | Inclined Indirectly Heated Surface |
| System Components | Cyclone Separator, Condenser, Receiver |
| Design | Customized / Rotary Type |
| Solvent Recovery | Almost 100 Percent |
| Condition | New Only |
| Country of Origin | Made in India |
Key Features
- Gentle Mixing: Rotary action enables gentle folding of material.
- Efficient Drying: Vacuum operation allows faster evaporation at lower temperatures.
- Complete Recovery: Vapour passes through Cyclone Separator into Condenser for ~100% solvent recovery.
- Material Suitability: Ideal for free-flowing powders (non-sticking/non-lumping).
