Description

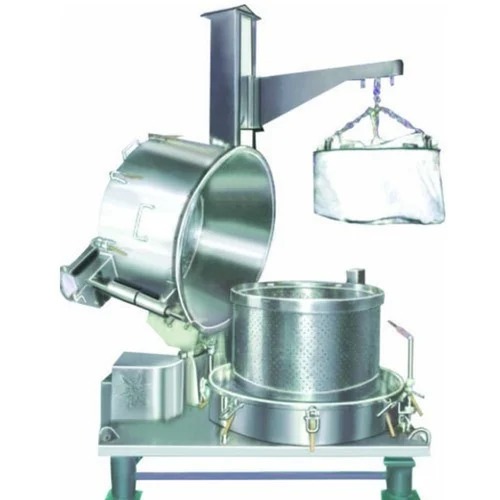

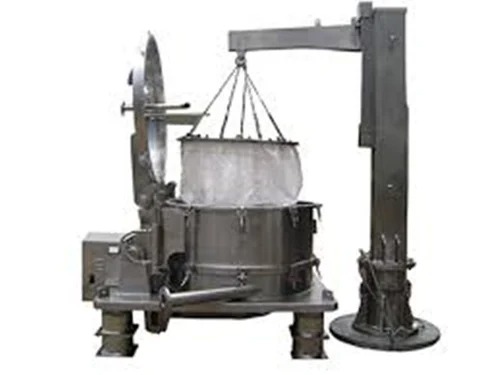

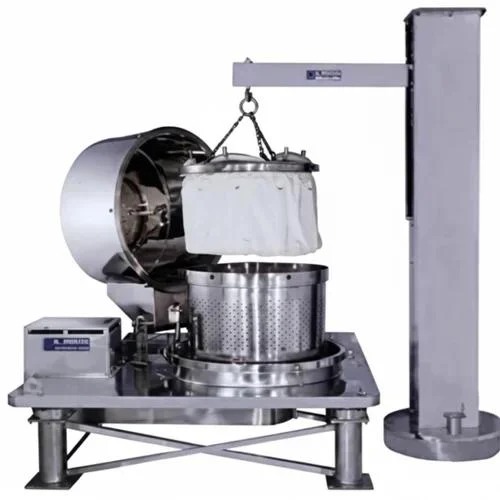

DryTechno Offers Bag Lifting Centrifuge is an improvement over the Manual Top Discharge centrifuge and is now a very popular model. In this model the Filter Bag is fastened to the Basket top plate. The Basket Top plate is in turn locked onto the basket shell. When the filtration is completed the Plate is removed by unlocking the plate from the basket shell and pulled out using a hoisting arrangement. The filter bag containing the product comes out of the centrifuge. The product is then moved out to a suitable location and unloaded.
The Main Advantage of this machine is that the unloading time is reduced considerably and also has less manual Intervention when compared with a manual Top Discharge centrifuge. High production rates can be achieved with this machine.
Sizes Available: Starting from 24″ Dia. up to 60″ Diameter. Materials of Construction: SS 316, SS 304, SS904L, Hastelloy & Titanium Coating:Halar (ECTFE), Teflon (PFA), Rubber Lining, FRP Lining
Technical Specifications
| Product Type | Bag Lifting Centrifuge |
| Brand | DryTechno |
| Capacity | 350 L (Standard Model) |
| Sizes Available | 24″ Dia. up to 60″ Diameter |
| Material of Construction (MOC) | SS 316, SS 304, SS 904L, Hastelloy & Titanium |
| Special Coatings Available | Halar (ECTFE), Teflon (PFA), Rubber Lining, FRP Lining |
| Discharge Type | Top Discharge via Hoisting Arrangement |
| Minimum Order Quantity | 1 Piece |
| Country of Origin | Made in India |
Key Advantages
- Efficiency: Unloading time is reduced considerably compared to manual discharge.
- Productivity: High production rates due to quick turnaround.
- Ease of Use: Hoisting arrangement removes the need for manual scooping.
- Versatility: Available in exotic materials like Titanium and Hastelloy for corrosive applications.
